Build Your Gateway

Payrexx comes into play as soon as your buyer has submitted their data on your website and starts the payment.

Gateway Creation

Please read the API reference for all necessary information.

You will learn about API request basics at Payrexx and can continue with creating a Gateway.

Payload

Besides the required data, you are free to choose what you want to transfer to Payrexx. Here are some parameters that might be interesting for you:

Parameter	Data Type	Description
successRedirectUrl	string	After a successful payment, a redirection to this URL is made. Must be encoded.
failedRedirectUrl	string	After a failed payment, a redirection to this URL is made. Must be encoded.
cancelRedirectUrl	string	After a cancelled payment, a redirection to this URL is made. Must be encoded.
basket	array	A list of all product items. Used for email notifications and invoices
pm	string[]	Restrict the available payment methods with the according identifiers
preAuthorization	bool	Process a tokenization payment Find out more
reservation	bool	Process a pre-authorization payment Find out more
referenceId	string	This can be used to assign the Payrexx transaction to an order later on
fields	array	Customer data goes here
skipResultPage	bool	Skip the Payrexx result page Note: If a gateway is created with the skipResultPage flag and then used in an iframe integration, &appview=1 needs to be added to the gateway link
chargeOnAuthorization	bool	Tokenization - Execute an initial charge immediately
validity	int	For how long should your payment gateway be available
subscriptionState	bool	Set to true if you want to execute subscriptions
subscriptionInterval	string	Subscription - Payment interval (PHP interval specification)
subscriptionPeriod	string	Subscription - Duration (PHP interval specification)
subscriptionCancellationInterval	string	Subscription - How long a cancellation is possible (PHP interval specification)
lookAndFeelProfile	string	If you got multiple Look & Feel profiles, decide which one to use

All Possible Fields

• title

• forename

• surname

• company

• street

• postcode

• place

• country

• delivery_title

• delivery_forename

• delivery_surname

• delivery_company

• delivery_street

• delivery_postcode

• delivery_place

• delivery_country

• phone

• email

• date_of_birth

• terms

• privacy_policy

• custom_field_1

• custom_field_2

• custom_field_3

• custom_field_4

• custom_field_5

Examples

fields[forename][value]=John
fields[lastname][value]=Doe
fields[email][value]=[e-mail]
fields[street][value]=Burgstrasse 20
fields[postcode][value]=3600
fields[place][value]=Thun
fields[country][value]=CH

Languages

If multi-language support is enabled in the merchant backend, it is possible to provide multiple language translations in the API for Name and Description attributes.

Each language is identified by an ID:

ID	Language
1	German
2	English
3	French
4	Italian
7	Dutch
8	Portuguese
9	Turkish
10	Polish
11	Spanish
12	Danish
13	Swedish
14	Norwegian

Examples

# Without translation
fields[custom_field_1][name]=Fieldname

# With German and English translation
fields[custom_field_1][name][1]=Feldname
fields[custom_field_1][name][2]=Fieldname

Response

After the gateway was created successfully, you will get a link in the response of your request. Redirect the shopper to this link for processing the payment.

Also, store the gateway ID in your software, you might need this later.

Payment

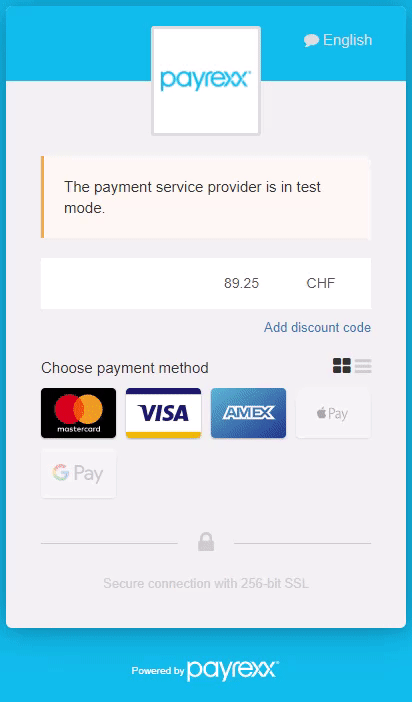

Your shopper can choose a payment method in the Gateway and process the payment:

After Payment

The shopper is redirected to the matching URL depending on the outcome of the payment process. (success-/cancel-/failedRedirectUrl)

The decision of whether a transaction was successful should not be made based on the redirect URL used. Always use the Payrexx Webhook or API to determine a transaction status.

Next Steps

Now you have to perform further steps based on the payment result.
